3D Solid-state LiDAR

EN

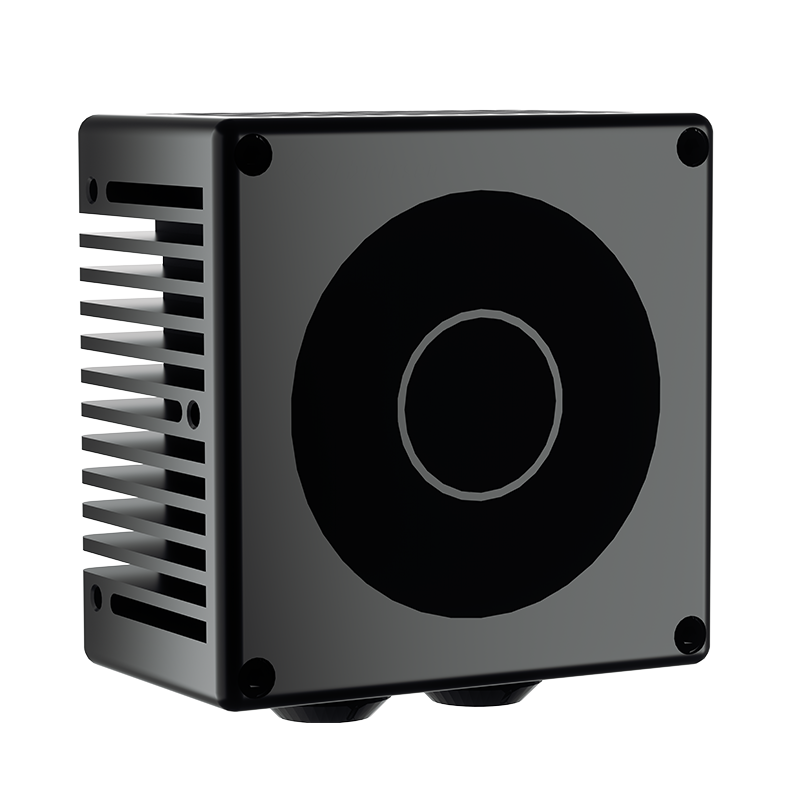

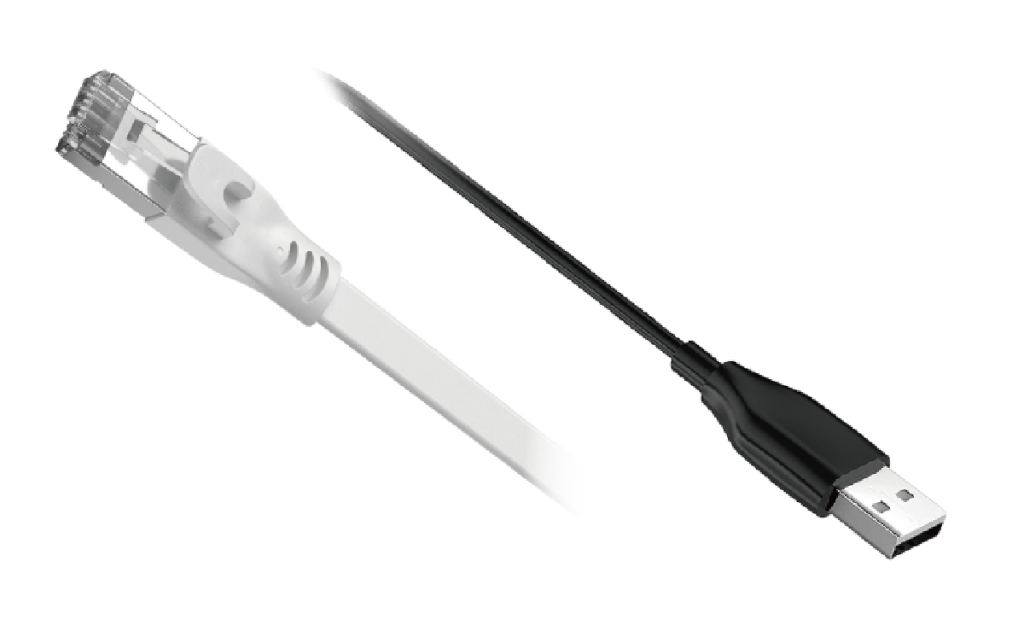

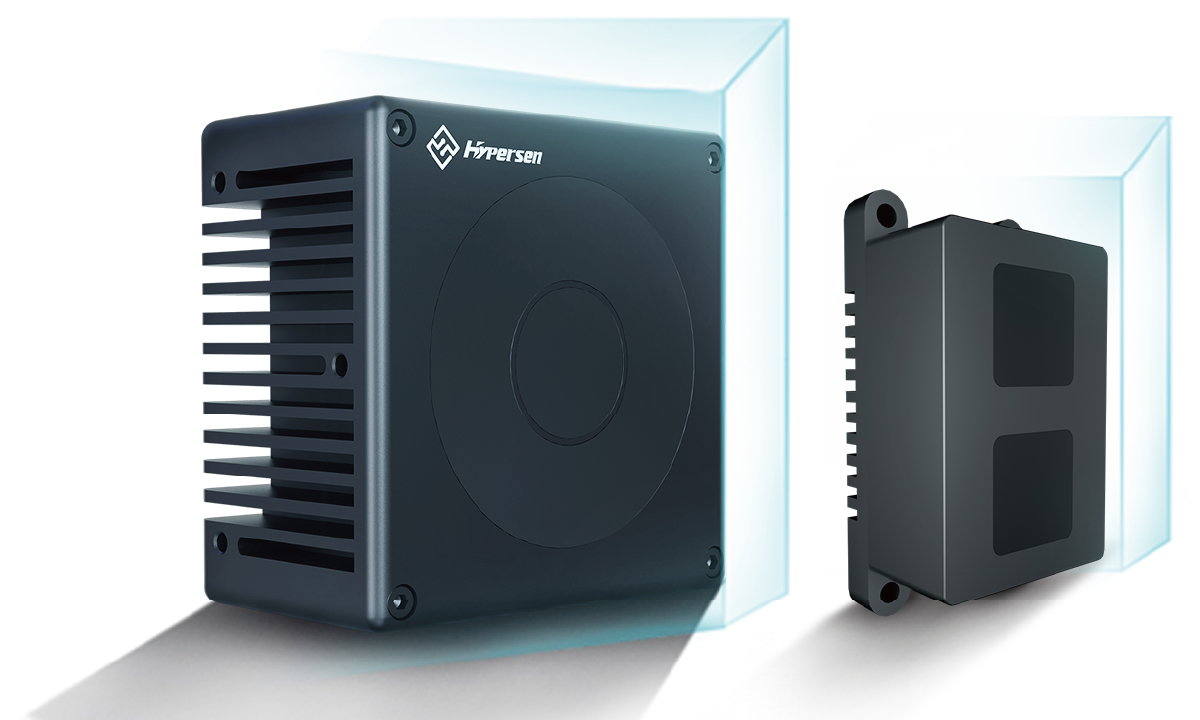

HPS-3D160 Pro and HPS-3D640 area array solid-state lidar are based on the ToF (Time-of-Flight) principle and integrate a sophisticated infrared lens and laser lighting system. They have built-in high-performance processors and professional mathematical algorithms. They can generate 3D point cloud data in one shot and transmit it in real time through a high-speed communication interface.
HPS-3D series products integrate high-power 850nm infrared VCSEL emitters and high-photosensitive components. The software product is embedded with a high-performance processor and has advanced data processing, filtering and compensation algorithms to ensure stable measurement and simultaneous data output. In terms of hardware, the all-solid-state structure, industrial-grade IP67 protection design, and aviation aluminum casing make the product suitable for more complex environments.

HPS-3D160 Pro and HPS-3D640 area array solid-state lidar are based on the ToF (Time-of-Flight) principle and integrate a sophisticated infrared lens and laser lighting system. They have built-in high-performance processors and professional mathematical algorithms. They can generate 3D point cloud data in one shot and transmit it in real time through a high-speed communication interface.

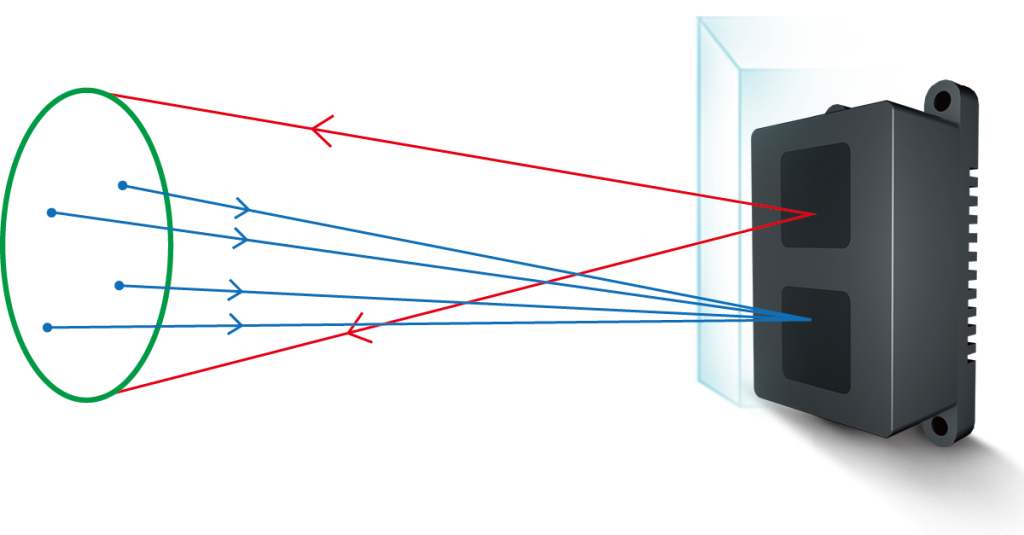

The HPS-3D series is the latest generation of high-performance solid-state lidar sensors based on the time-of-flight (ToF) principle. ToF is the abbreviation of Time of Flight, literally translated as time of flight. By continuously sending light pulses to the target, and then using the sensor to receive the light returned from the object, the target distance is obtained by detecting the flight (round trip) time of these emitted and received light pulses.
The HPS-3D series products are equipped with an optimized illumination system and a low-distortion infrared optical lens, which can measure 90% reflective white targets at a distance of up to 8 meters. Flexible user-defined region of interest (ROI) function, among which HPS-3D 160 has Simple-HDR, Auto-HDR and Super-HDR modes, making the HPS-3D series suitable for various scenes.

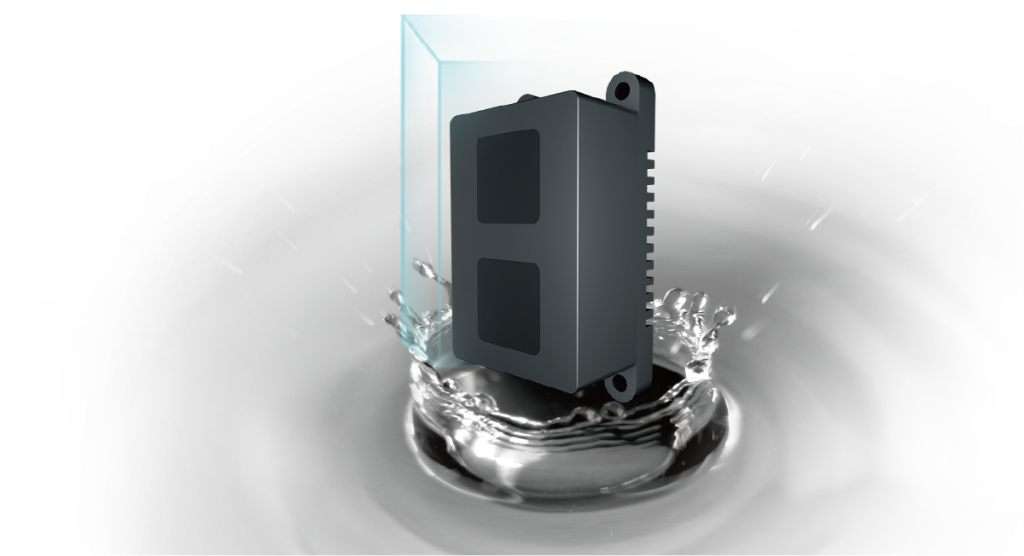

HPS-3D 160 solid-state lidar adopts IP67 industrial-grade protection design. HPS-3D 640 solid-state lidar adopts IP65 industrial-grade protection design. IP67 can be customized and can completely prevent the intrusion of foreign objects and dust. HPS-3D640 adopts an anti-shedding aviation-grade plug, which is stable and reliable.
