Laser Tool Setter
High precision High reliability
High static overload protection
24Bit high-speed ADC sampling
2000Hz data output frequency
High signal-to-noise ratio fully digital output
Optimized design of strain measurement structure
Built-in high-precision decoupling, filtering and temperature compensation algorithms
Product Description

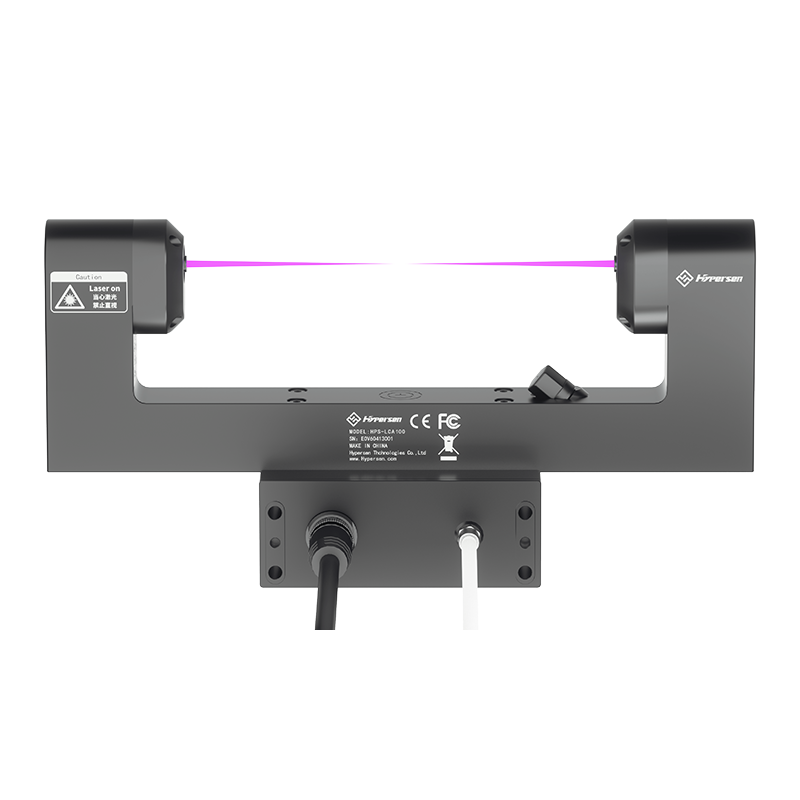

- HPS-LCA100 is the latest generation of high-precision laser tool setter that uses a focused purple laser beam as the measurement medium. The self-developed air seal and precision optical system ensure that stable, rapid and accurate tool measurement can be achieved under the complex working conditions of CNC machining centers.

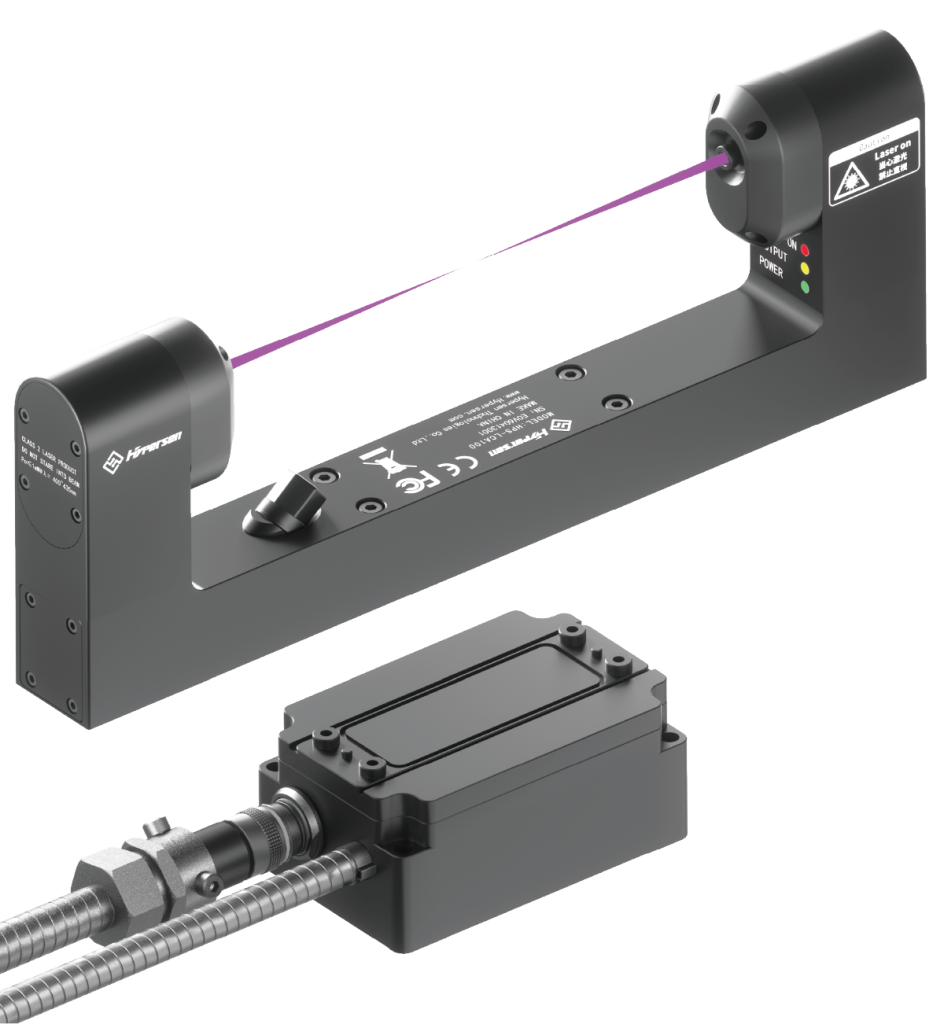

- The integrated controller base of HPS-LCA100 makes the overall structure more compact, supports multiple cable outlet methods, makes installation more convenient, and reduces the space occupied by the machine tool.

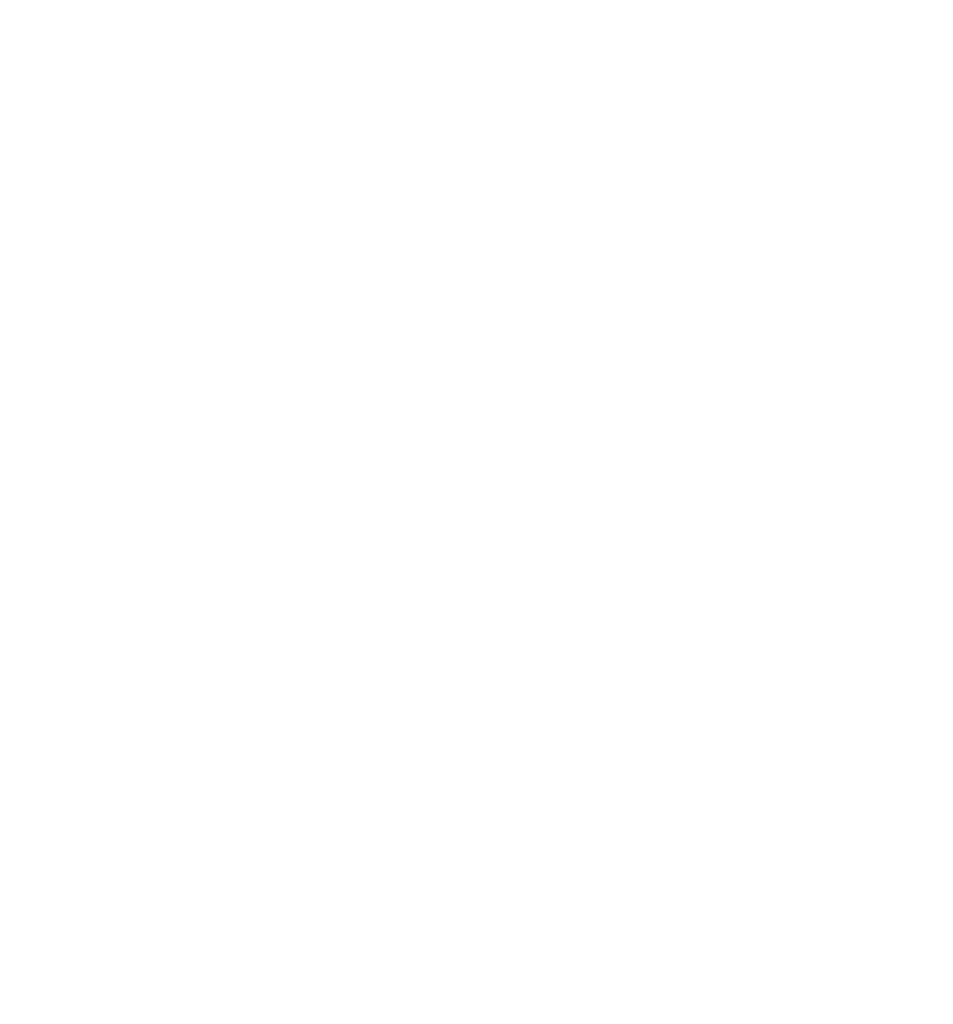

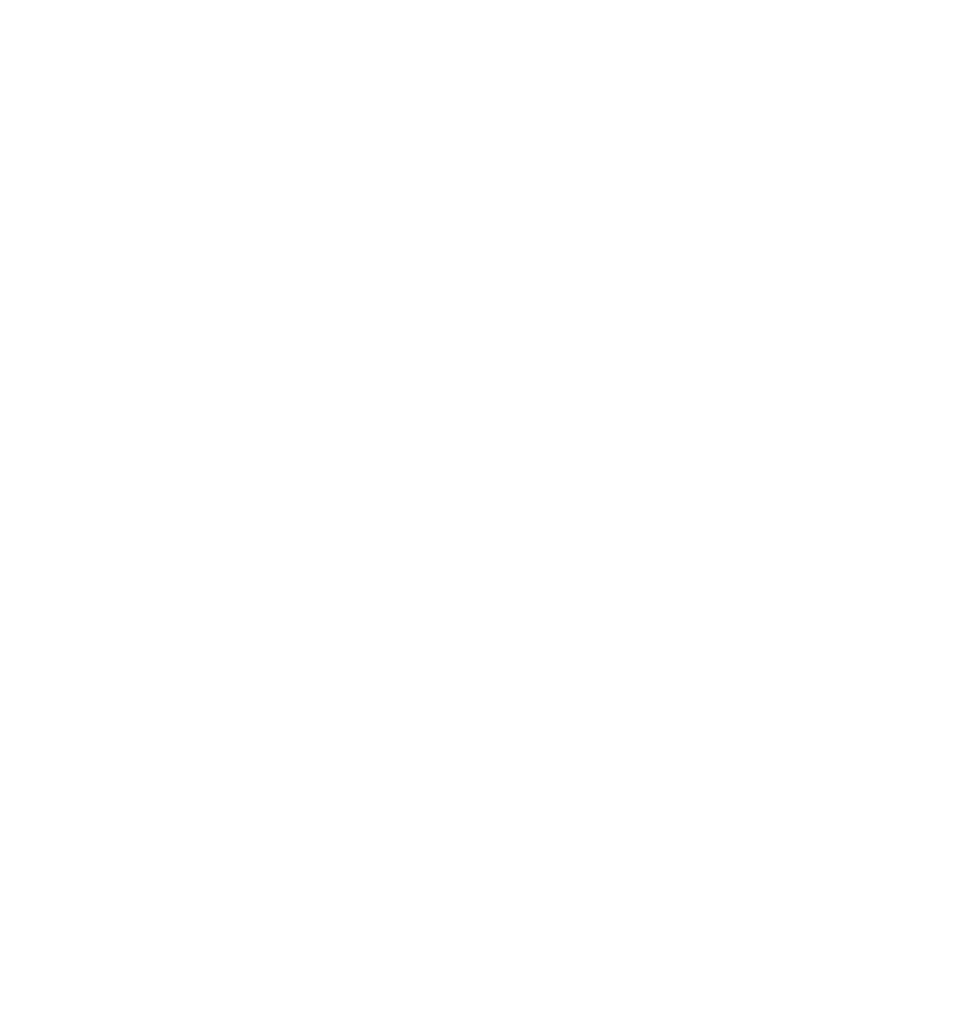

Principle Introduction
- The laser tool setter is a precision measuring instrument used in machining. Based on the collimation, monochromaticity and high concentration characteristics of the laser beam, when the laser beam is blocked by the tool, the optical signal will be interfered and changed. The receiver detects these changes and transmits the signal to the signal processor for processing, and obtains one or more different electrical signals to determine the state of the tool at this time.
Product Advantages

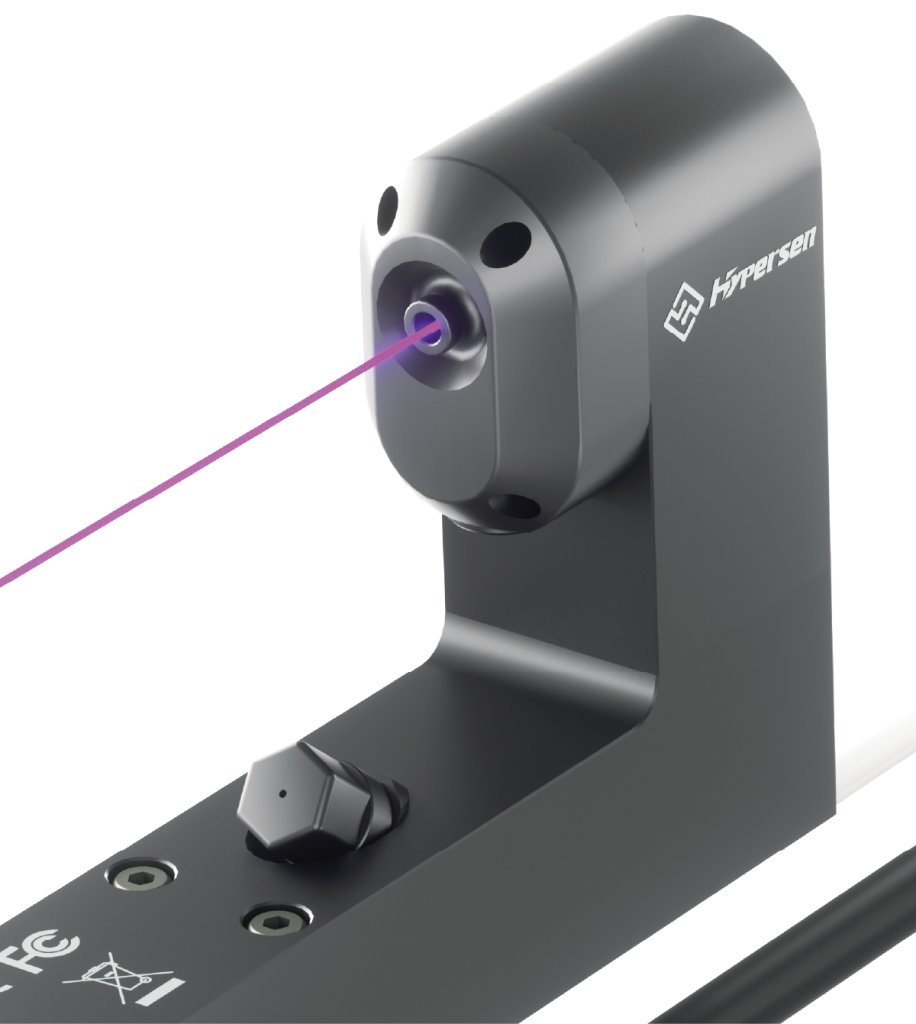

Built-in tool cleaning system
- Continuous compressed gas is used to spray out from the nozzle at high speed through a specially designed tiny laser drilling airflow, which can remove coolant and machining debris from the tool surface and ensure tool detection accuracy.
- Creates perfect airflow focused on the center of the tool
- Excellent cleaning ability
- Built-in stop valve to prevent cutting fluid
Controller base
- Built-in high-performance pneumatic valve
- No separate pneumatic components required
- Supports quick replacement or cleaning
- Multiple outlet methods
- Only 1 cable and 1 air tube connection

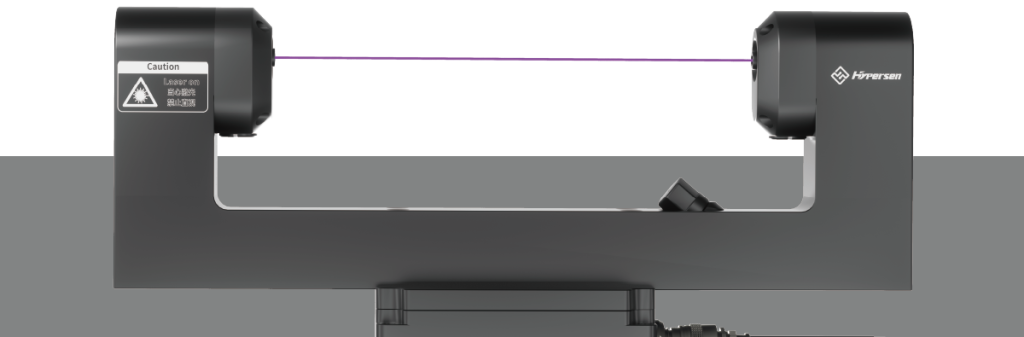

High-precision purple laser technology
- HPS-LCA 100 uses a 405nm purple laser with a shorter wavelength, which can achieve higher measurement accuracy and anti-interference ability. The uniquely designed air seal system improves the service life and reliability of the tool setter.
| model | Protection class (EN 60529) | Repeatability | Minimum measurable tool diameter | Tool diameter range |
|---|---|---|---|---|
| HPS-LCA100 | IP68(Under working air supply condition) | 0.4μm2σ | ∅20μm | Vertical installation:∅20μm-∅500mm |
| HPS-LCA200 | 0.3μm2σ | Vertical installation:∅20μm-∅100mm |
