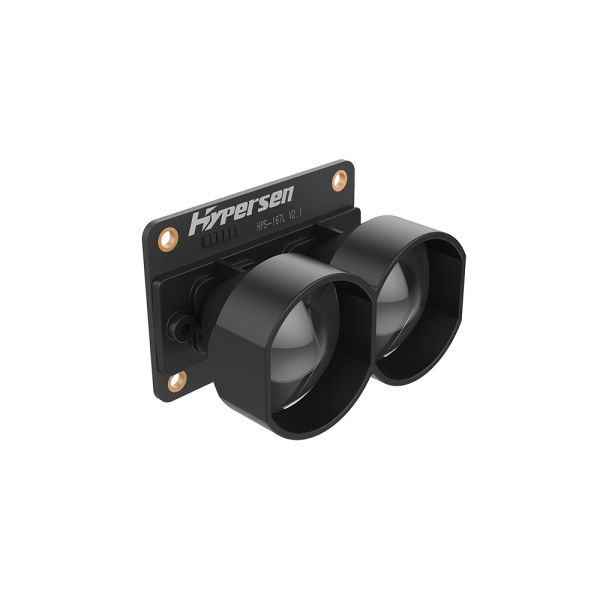

HPS-167-L
Product introduction
– Time-of-Flight (ToF) infrared ranging sensor
– 6.8g ultra light weight
– High SNR
– Fast and accurate distance ranging up to 50m
– Intergrated ambient light, temperature and color compensation algorithms
– 6-54Hz adaptive output data rate
| Model | HPS-167-L | Size | 35x24x21.5mm |
| Weight | 8g | Power Supply | DC 4~6V |
| Max. Power Consumption | 1.3W | Quiescent Power Consumption | 0.1W |
| Storage Temperature | -40~+85℃ | Operating Temperature | -10~+55℃ |
| Emmiter | VCSEL Laser | Emitting Angle | ±1.6 ° |
| Max. Measuring Distance | 40m | Mini. Measuring Distance | 0.08m |
| Waterproof | Lens cone waterproof | Adaptive Data Output Rate | 6~54Hz |
| Output Data | Distance, accuracy, signal strength, ambient IR level, temperature | Communication Interface | TTL UART |
