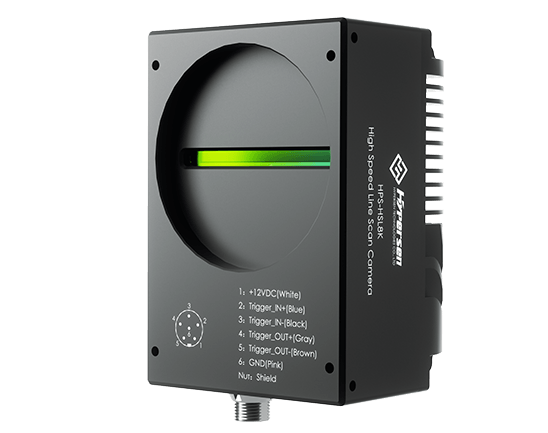

HPS-HSL8K
Product introduction
– Ultra-high-speed image acquisition system
– 7um*7um, 8192*2 pixels
– 200k line/s
– Standard M72-mount
– 40G Optical fiber ultra-high-speed transmission
– Complete SDK and software support
| Model | HPS-HSL8K |
| Resolution | 8192x2 |
| Sensor format | 7μm x 7μm |
| Photosensitive surface length | 57.344mm |
| Line frequency | 200K lines/s |
| Dynamic range | 63.3dB |
| Maximum signal-to-noise ratio | 40dB @LG |
| Shutter Mode | Global shutter, support automatic exposure, external trigger exposure, etc. |
| Data Interface | 40 Gigabit Ethernet optical fiber interface |
| Integrated Image Processing Module | FPN denoising, PRNU correction, gamma correction, lens correction, ROl, gain adjustment,horizontal inverted readout, etc. |
| Lens mount | M72*0.75 |
| Digita l/O | 1 isolated input, 1 isolated output, optional 1 differential input, 1 differential output |
| Data format | Mono 8 bit/10 bit/12 bit |
| Power supply and power consumption | Power supplyvoltage:DC 12V,Typical power consumption:15W |
| Temperature | Working temperature: 0 ~ +45℃,Storage temperature: -20 ~ +70℃ |
| Weight (Without lens) | ≈ 640g |
| Size | 117x82x63mm |
