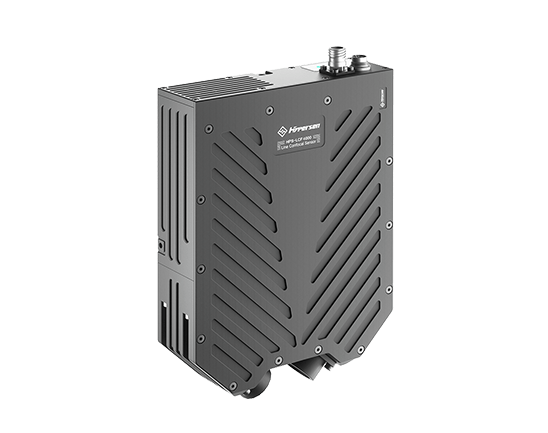

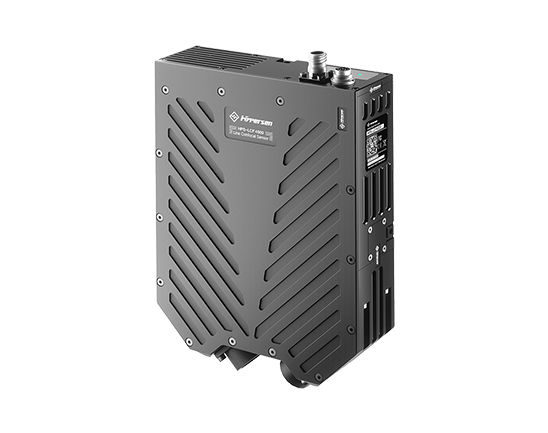

HPS-LCF 4000
Product introduction
– Suitable for 3D inspection of transparent, mirrored and highly reflective materials
– Can record detailed raw data and generate various forms of 2D/3D graphs
– 2048 points/profile; 0.04μm Z-axis repeatability
– Ultra-high-speed scanning: 35000 lines/sec
– Complete SDK and one-stop software support service
– Applied in industrial precision measurement and scientific research
| model | HPS-LCF 4000 | Field of View（mm） | 4.3 |
|---|---|---|---|
| X-resolution（μm） | 2.1 | Z-repeatability（μm）*1 | 0.04 |
| Stand-off distance（mm） | 10 | Measurement range(mm) | 0.7 |
| Scan rate at full measurement range(Hz)*2 | 5000 | Max.scan rate(Hz)*3 | 35000 |
| Number of date points/profile | 2048 | Max.surface slope on mirror(deg) | ±15.1 |

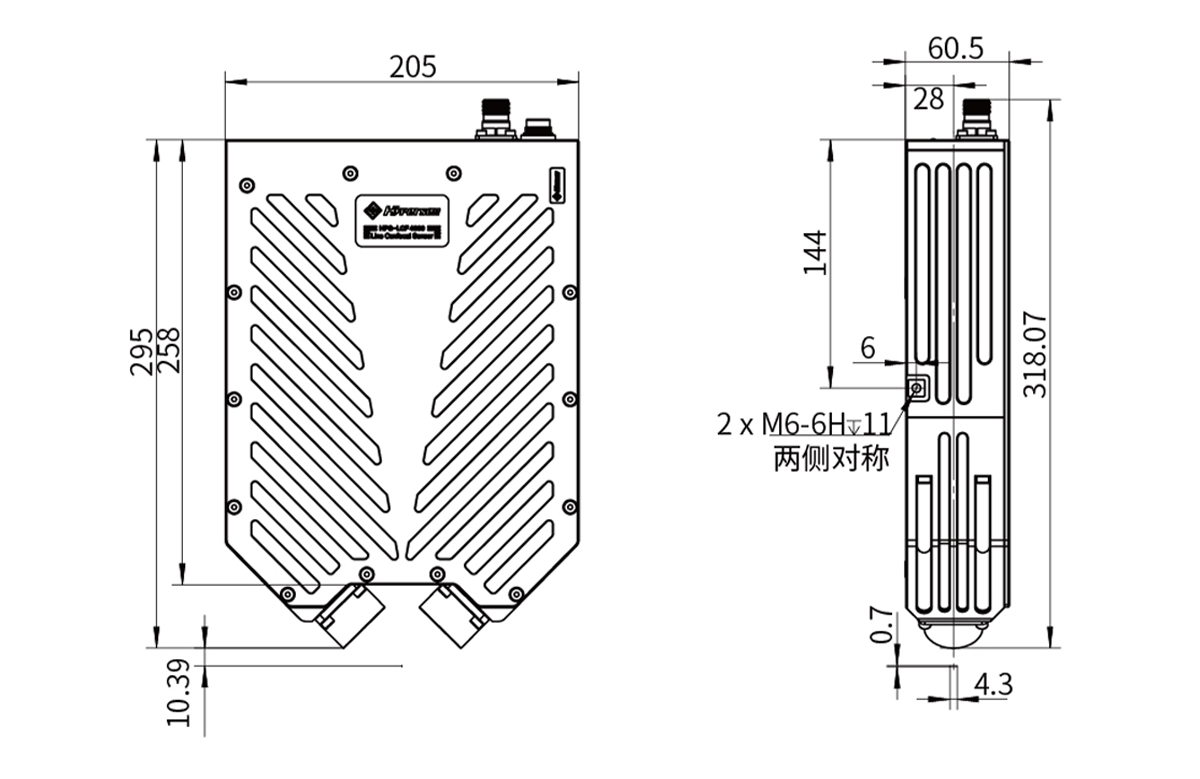

| Dimensions(W*H*D)(mm) | 205*295*60.5 | Weight(kg) | 5.4 |
| Power | 35w | Protection degree(EN 60529) | IP55 |
| Power supply | 24V DC,3A | Connection to the controller | 40G optical fibre |
| Digital input | Optocoupler input and output |
*1 This value is a 3σ value, which is obtained by measuring the miror standard gauge block on the optical platform in our company’s cleanroom.
The number of contours: 200,000; integration time: 200us; Light signal intensity (Manually adjusted): 20%.
*2 The number of data points/profle at this scan rate is 1024, while the scan rate will be 2500Hz with 2048 data points/profile.
*3 The number of data points/profle at this scan rate is 1024, while the scan rate will be 2600Hz with 2048 data points/profile.
*4 The number of data points/profile at this scan rate is 1024, while the scan rate will be 3100Hz with 2048 data points/profile.
*5The measurement range under this scanning rate is 1/8 of the full range.
*All technical specifications are subject to the latest oficial datasheet. Hypersen reserves the right of final interpretation.
