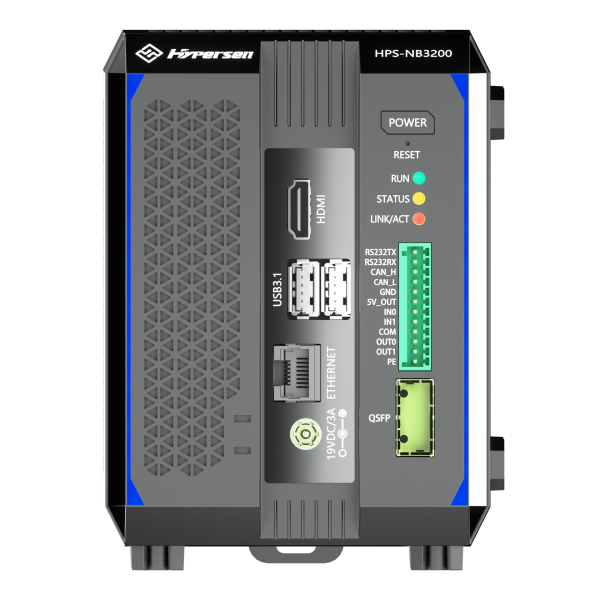

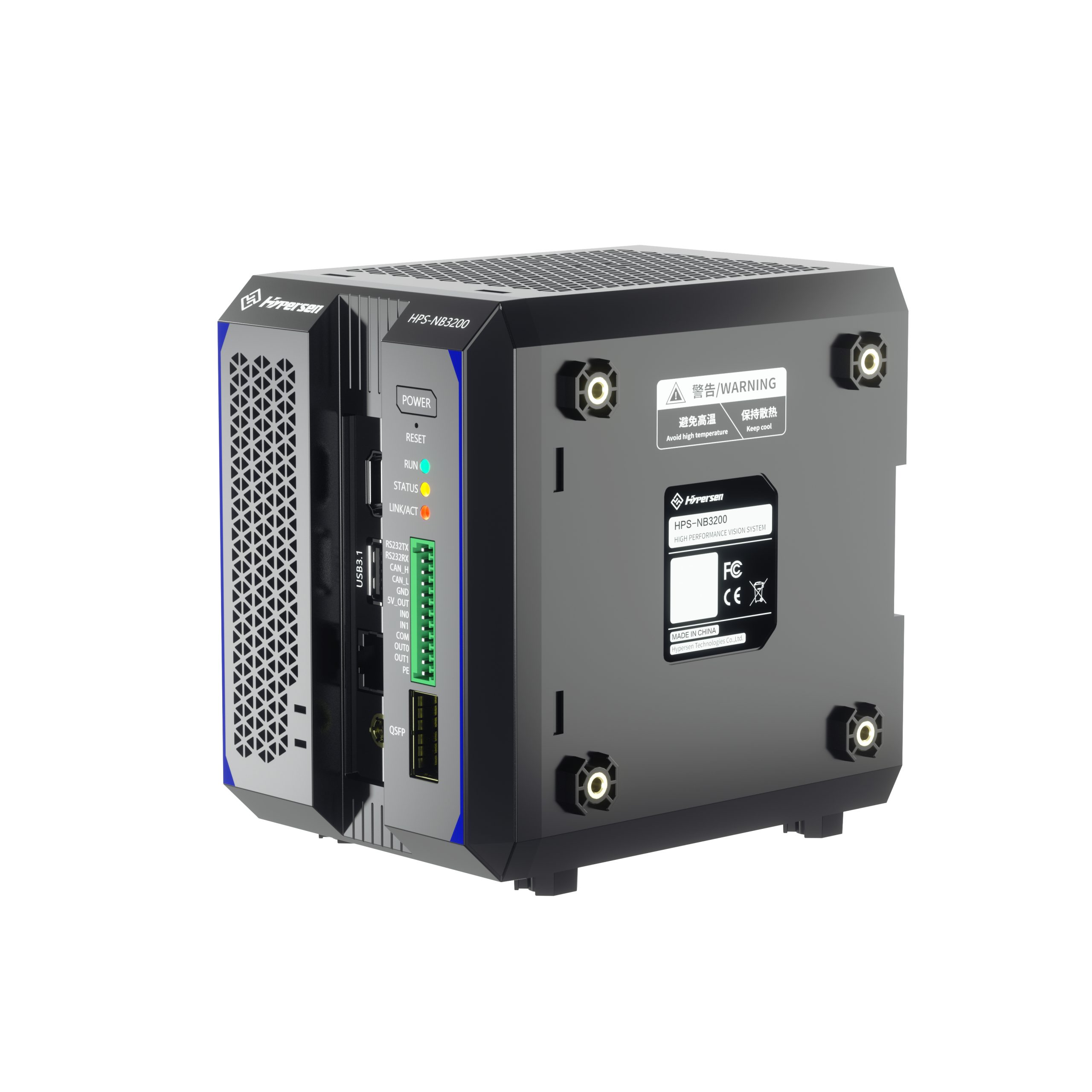

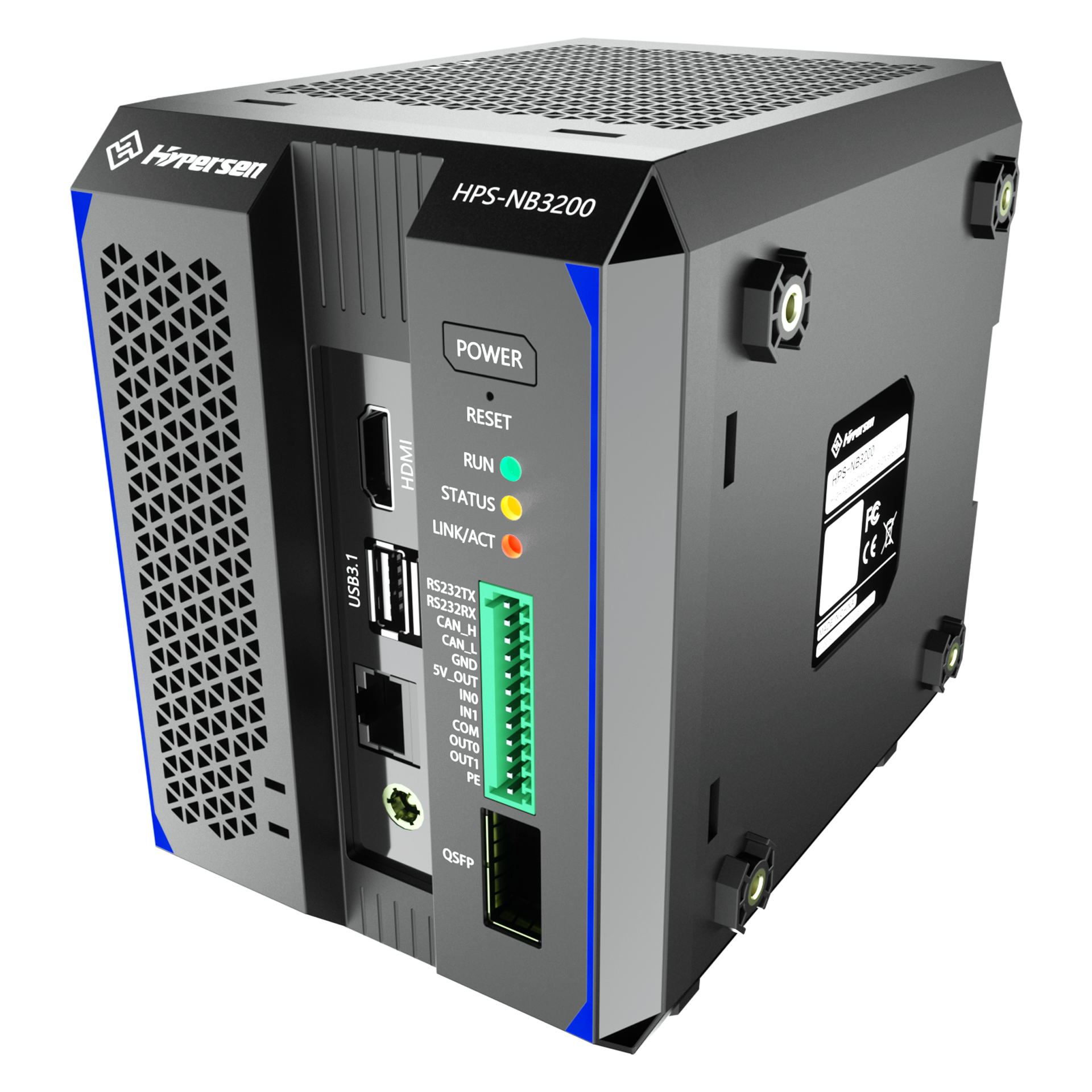

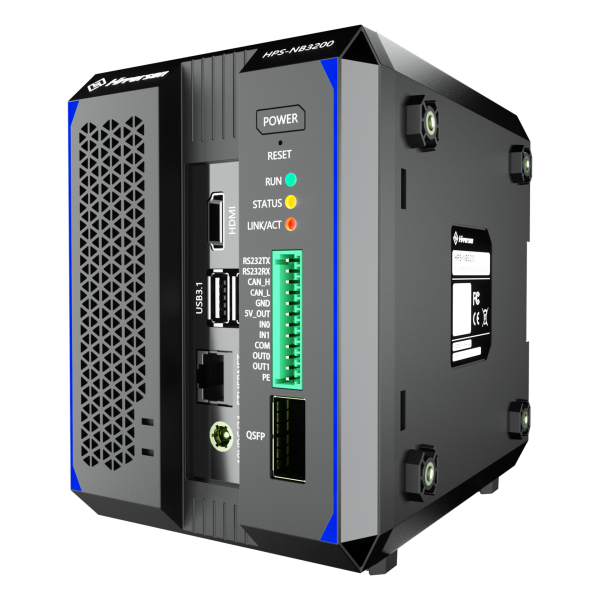

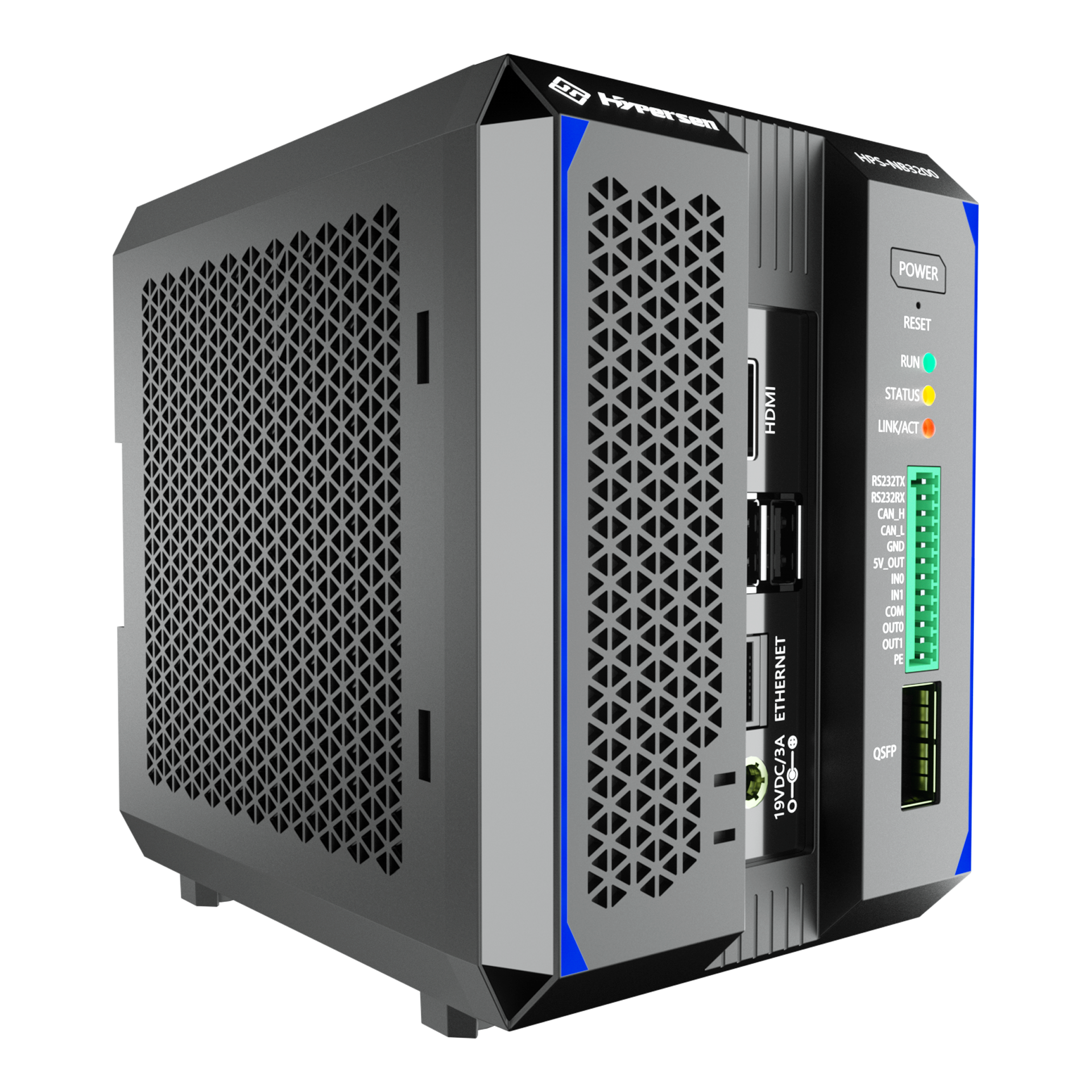

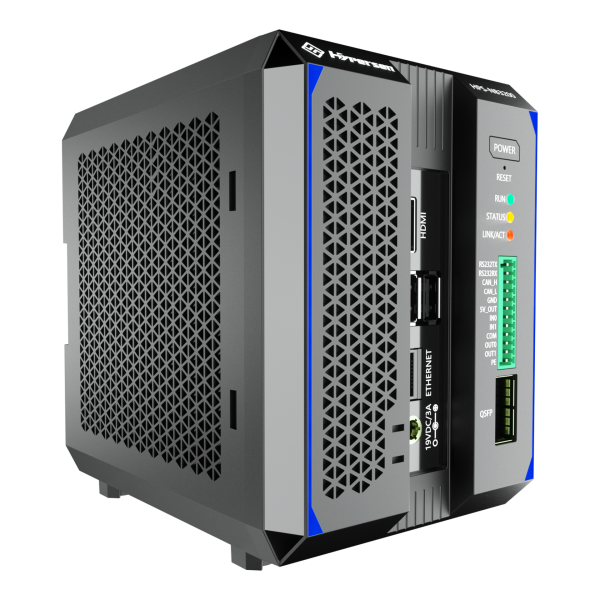

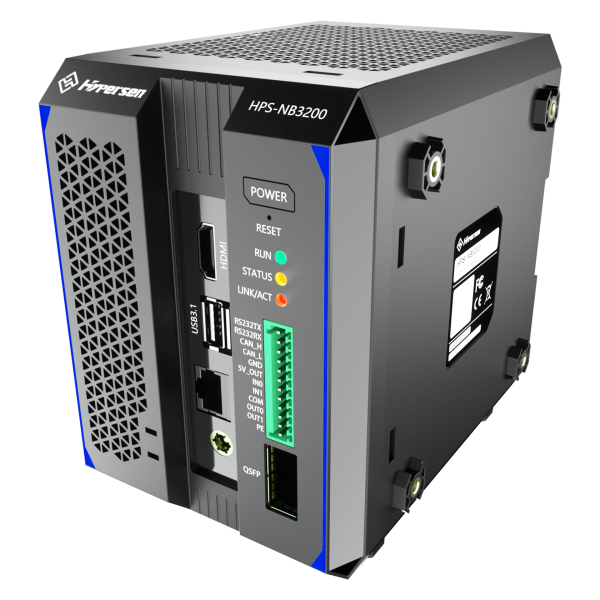

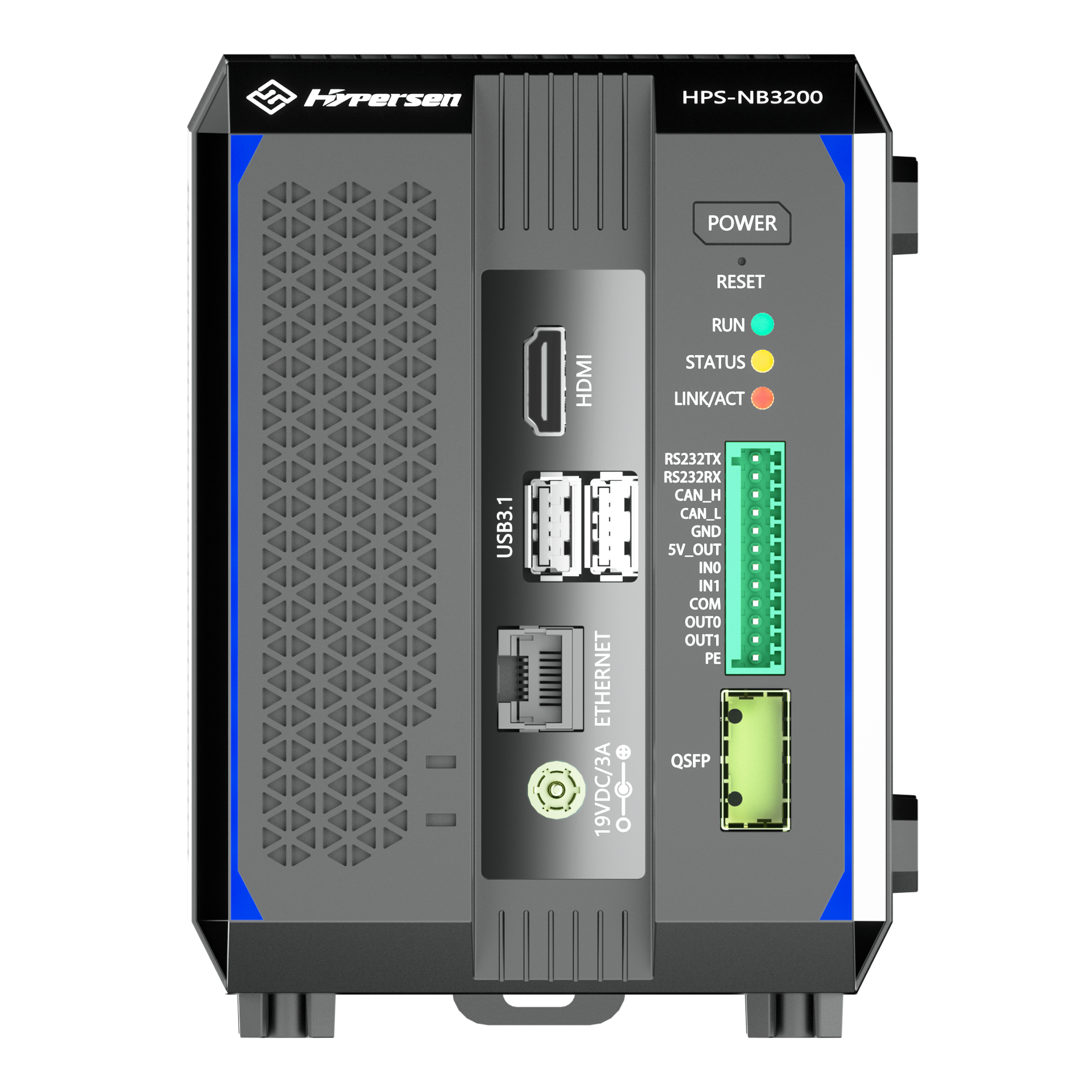

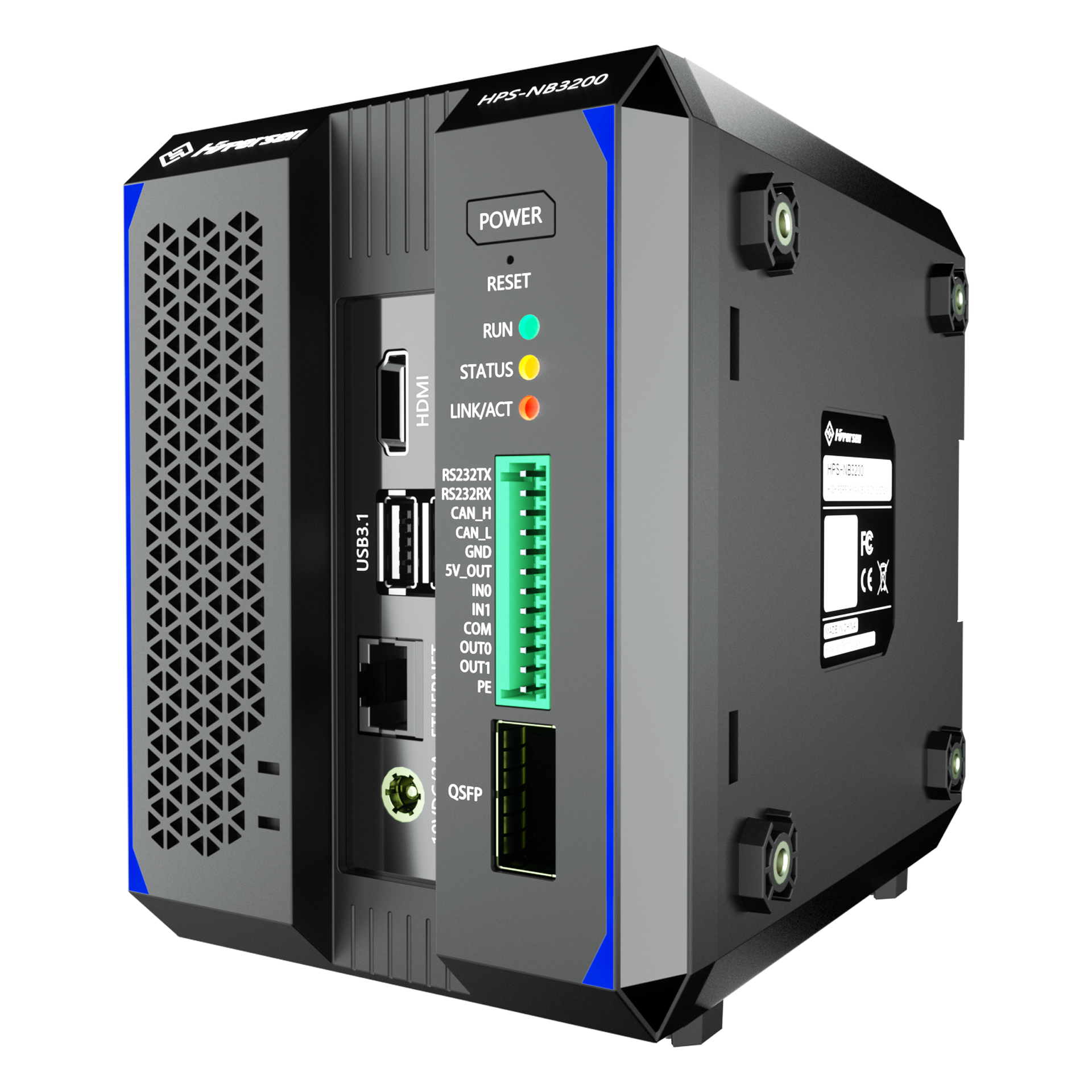

| Model | HPS-NB3200 | |||
| Input power requirements | DC 19V，4.74A | |||
| Power | 55W | |||
| Operating temperature | 0~+50℃ | |||
| Relative humidity | 35~85%RH(non-condensing) | |||
| Weight | ≈1400g | |||

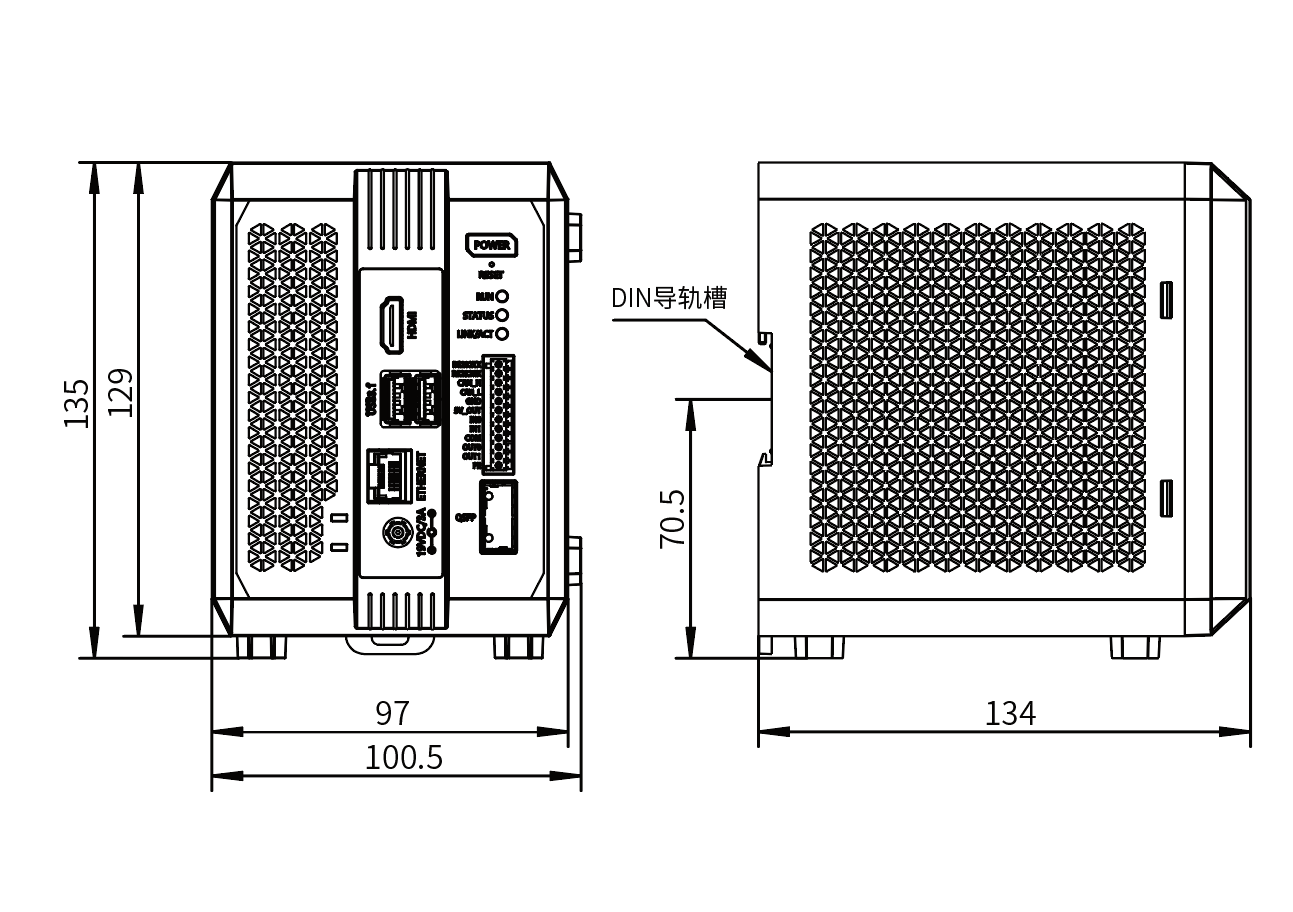

| Dimensions(L*W*H)(mm) | 134×100.5×135mm | |||
| Communication interface | QSFP 40Goptical fiber interface/USB3.1×2/HDMI/Gigabit Ethernet/RS232 | |||
| input/output | Optocoupler isolation input x2 | AB phase signal input | ||
| Optocoupler isolation output x2 | Optocoupler isolation | |||
| Installation method | DIN rail | DIN rail/screws | ||
| Interactive part | Button x3 | Button x1，Bi-Color LEDx2 | ||
| Accessories | DIN bracket mounting buckle/cable clip | |||
